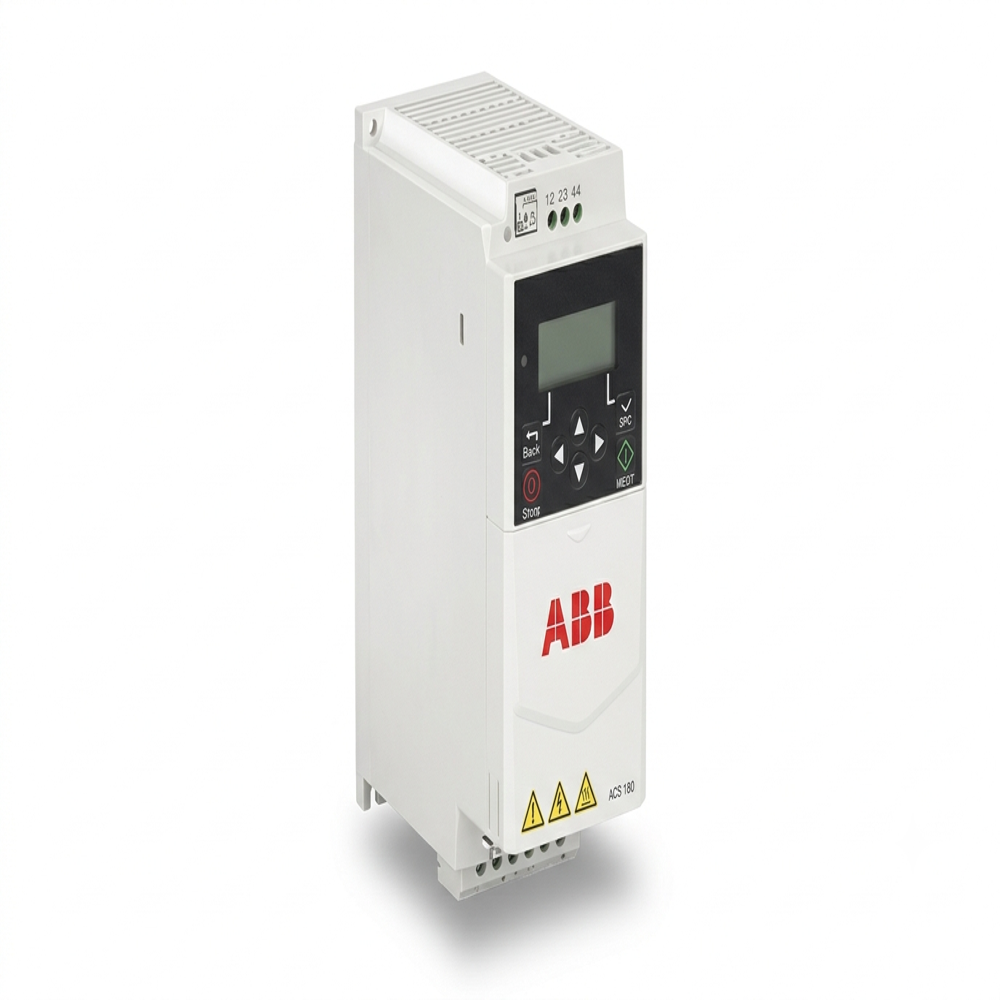

ACS 180 Ac Drive

Name: ACS 180 Ac Drive
Brand: Adarsh Industrial Automation
Price: 6555.0 INR
Availability: InStock

Price 6555.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ACS 180 Ac Drive Specification

Feature
Compact Design, User Friendly Interface

Mounting Type
Wall Mount / DIN Rail

Operating Temperature
-10C to +50C

Efficiency
>97%

Insulation Material
Industrial Grade

Shape
Rectangular

Humidity %
0 to 95% (non-condensing)

IP Rating
IP20

Surface Finish
Matte

Power Factor
>0.98

Connector Type
Screw Terminal

Product Type
Variable Frequency Drive (VFD)

Application
Pump, Fan, Conveyor, HVAC

Protection Level
Overload / Short Circuit

Frequency (MHz)
50-60 Hz

Rated Voltage
200-240V AC

Energy Consumption
Optimized for Energy Saving

Output Type
AC

Color
White / Black

Dimension (L*W*H)
186 x 70 x 156 mm

Weight
1.2 kg

Size
Frame Size R0 to R2

Phase
Three Phase

Input Voltage
200-240V AC

Connection Type
Terminal Block

No Of Poles
3

Material
ABS Plastic & Metal

Model
ACS180

Display
LED / Keypad

Analog Input
1 (0-10V/4-20mA)

Fieldbus Options
Modbus RTU (RS-485)

Digital Inputs
4

Cooling
Natural Air / Fan Cooled

Relay Outputs
2

Control Method
Scalar (V/Hz), Sensorless Vector Control

ACS 180 Ac Drive Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat

ACS 180 Ac Drive About

We are a trusted supplier of premium-quality Industrial Automation Products, offering reliable performance, high efficiency, and long services life.

The ABB ACS180 is a compact, cost-effective, and highly reliable variable frequency drive (VFD) designed for precision motor control in machinery. It is an ideal choice for machine builders seeking efficiency and essential control in a small footprint.

Key Properties

Design: Compact, robust, and optimized for side-by-side installation.
Performance: Supports both induction and permanent magnet motors with sensorless vector control for precise torque/speed without an encoder.
Reliability: Coated circuit boards and high-temperature tolerance (up to 60C) ensure durability in harsh conditions.
Integrated Features: Built-in EMC filters, Modbus RTU, and Safe Torque Off (STO - SIL 3) reduce cabinet space and commissioning costs.
Programming: Includes adaptive "mini PLC" functionality for custom logic.

Typical Applications

Pumps & Fans: Energy-optimized flow control.
Material Handling: Conveyors and mixers.
Processing: Textile machines, food & beverage processing, plastics, and extrusion.
General Machinery: Printing, packaging, compressors, and commercial appliances (e.g., automatic gates).

Precision Control and Efficiency

The ACS 180 integrates both Scalar (V/Hz) and Sensorless Vector Control, ensuring precise speed and torque regulation across varying load conditions. This advanced control capability enhances the efficiency and lifespan of motors, making it ideal for seamless operation of fans, pumps, conveyors, and HVAC systems while maintaining an efficiency of over 97%.

Comprehensive Protection and Reliability

With built-in overload, short circuit, and thermal protection, the ACS 180 safeguards both equipment and operators. Its robust IP20-rated enclosure and industrial-grade insulation material ensure safe, long-term operation even in demanding environments with high humidity levels and fluctuating temperatures.

Flexible Integration and User Experience

The ACS 180 features a compact, wall-mountable or DIN rail-compatible design for easy installation. Its intuitive LED/keypad interface, support for multiple input methods, and fieldbus options via Modbus RTU (RS-485) simplify integration into diverse automation systems, while user-friendly navigation makes setup and monitoring hassle-free.

FAQ's of ACS 180:

Q: How does the ACS 180 improve energy efficiency in motor applications?

A: The ACS 180 is designed with advanced control methods and optimized for energy saving, boasting an efficiency greater than 97%. By precisely adjusting motor speed to match load requirements, it minimizes energy waste in processes such as pumping, ventilation, and material handling.

Q: What types of equipment can the ACS 180 be used with?

A: The ACS 180 is suitable for a variety of industrial applications, including pumps, fans, conveyors, and HVAC systems. Its flexible control methods and robust protection features make it ideal for environments requiring precise and reliable motor operation.

Q: When should I utilize the sensorless vector control feature?

A: Sensorless vector control on the ACS 180 is recommended for applications demanding stable torque and speed accuracy without external feedback devices, such as fans, conveyors, and pumps. It enhances performance where traditional V/Hz control may not be sufficient.

Q: Where can the ACS 180 be installed, and what mounting options are available?

A: The ACS 180 can be installed in control panels or directly onto walls using its wall mount or DIN rail compatibility. Its compact design and IP20-rated enclosure are suitable for industrial settings with standard environmental conditions.

Q: What is the process for connecting external devices to the ACS 180?

A: External devices can be connected using the terminal block and screw terminals of the ACS 180. It offers four digital inputs, one analog input (0-10V/4-20mA), and two relay outputs, providing flexible interfacing with sensors, switches, and other automation equipment.

Q: How does the ACS 180 protect against overheating?

A: The ACS 180 comes equipped with built-in thermal protection, automatically monitoring internal temperatures and adjusting operation if thresholds are reached. This feature prevents overheating and ensures reliable, long-lasting performance even in demanding environments.
