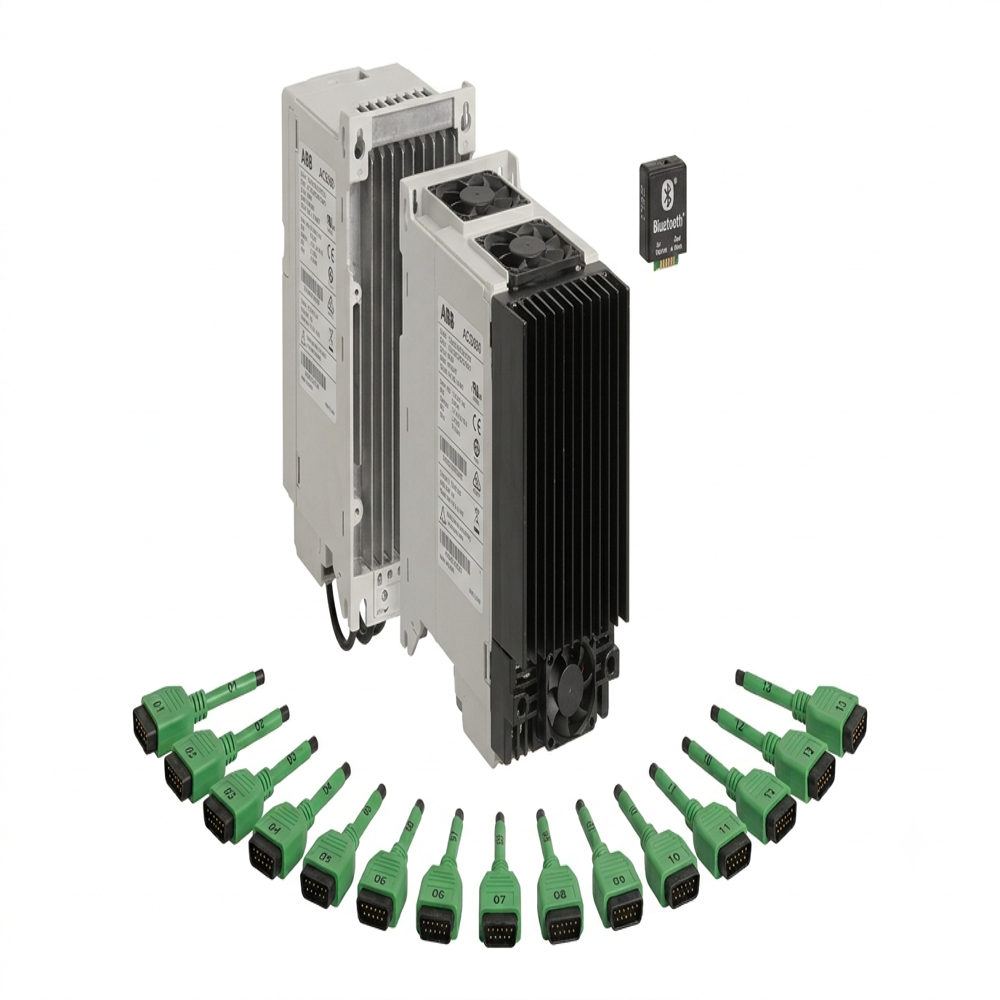

ACS 380

Name: ACS 380
Brand: Adarsh Industrial Automation
Price: 8260.0 INR
Availability: InStock

Price 8260.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ACS 380 Specification

Insulation Material
Plastic Composite

Mounting Type
Wall Mount / Panel Mount

Feature
Integrated Safety, Bluetooth Capability, Built-in EMC Filter

Connector Type
Terminal Block

IP Rating
IP20

Power Factor
>= 0.98

Overheating Protection
YES

Humidity %
5% - 95%, non-condensing

Operating Temperature
-10C to +50C

Shape
Rectangular

Efficiency
94-98%

Surface Finish
Matte

Product Type
AC Drive (Frequency Inverter)

Application
Motor Control, Industrial Automation

Protection Level
Overload, Short Circuit, Overvoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency (94-98%)

Output Type
Adjustable (Variable Frequency Output)

Color
Grey

Dimension (L*W*H)
126 x 90 x 223 mm

Weight
2.6 kg

Phase
Three Phase

Size
Compact

Input Voltage
380-480 V AC

No Of Poles
3

Connection Type
Screw Terminal

Material
Plastic, Metal

Communication Interface
Modbus RTU, Bluetooth, RS485

Relative Altitude Operation
Up to 4000m (de-rating above 1000m)

Motor Control Type
Vector & Scalar Control

Brake Chopper
Integrated

Standby Power Consumption
<7 W

Firmware Upgradeable
Yes

Maximum Output Current
11.5 A

Control Panel
Swappable, User-Friendly

Cooling Method
Forced Ventilation

Display Type
LCD Digital Display

Safety Functionality
Safe Torque Off (STO)

ACS 380 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat

About ACS 380

We are a trusted supplier of premium-quality Industrial Automation Products, offering reliable performance, high efficiency, and long services life.

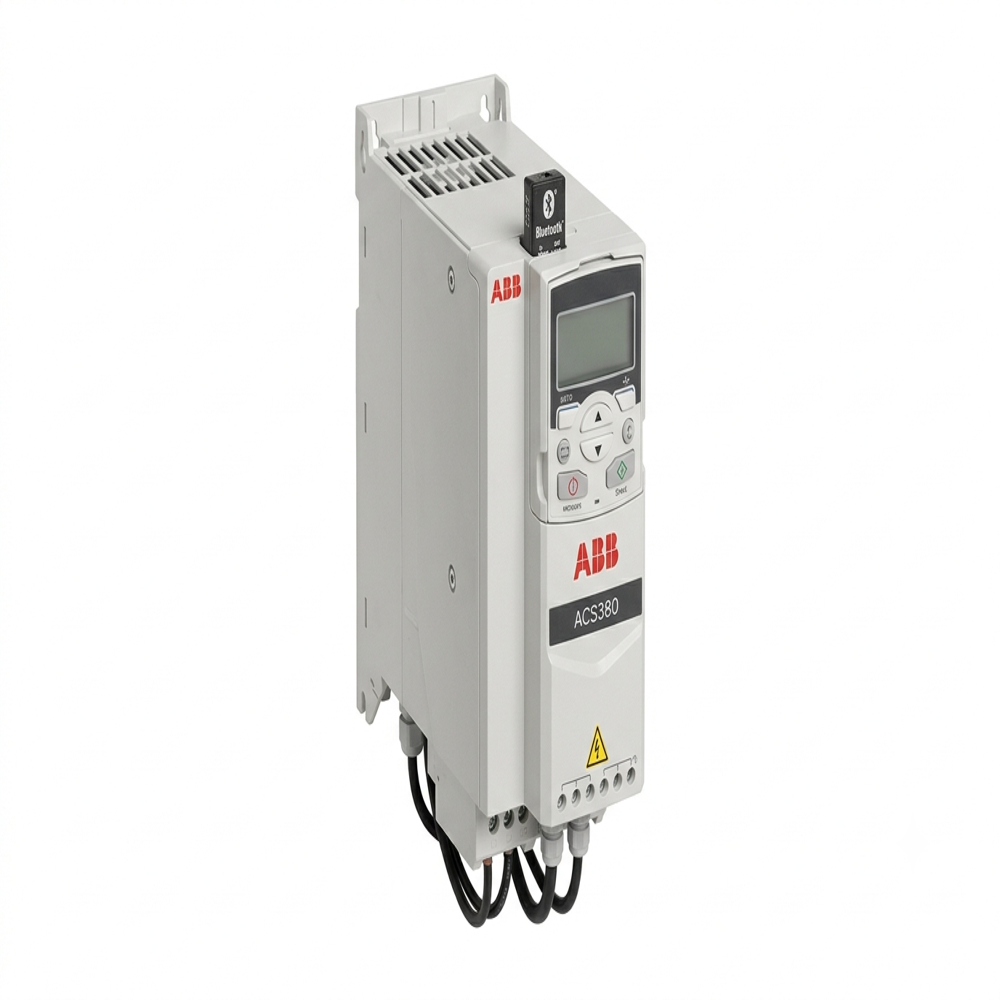

The ABB ACS380 is a compact, robust machinery drive designed for machine builders who need reliable, high-performance motor control. It is part of ABBs "all-compatible" portfolio, meaning it shares a user-friendly interface and toolset with other ABB drives, making it easy to integrate into existing automation systems.

Key Properties

Versatile Motor Support: Excellent control for induction, permanent magnet, and synchronous reluctance motors.

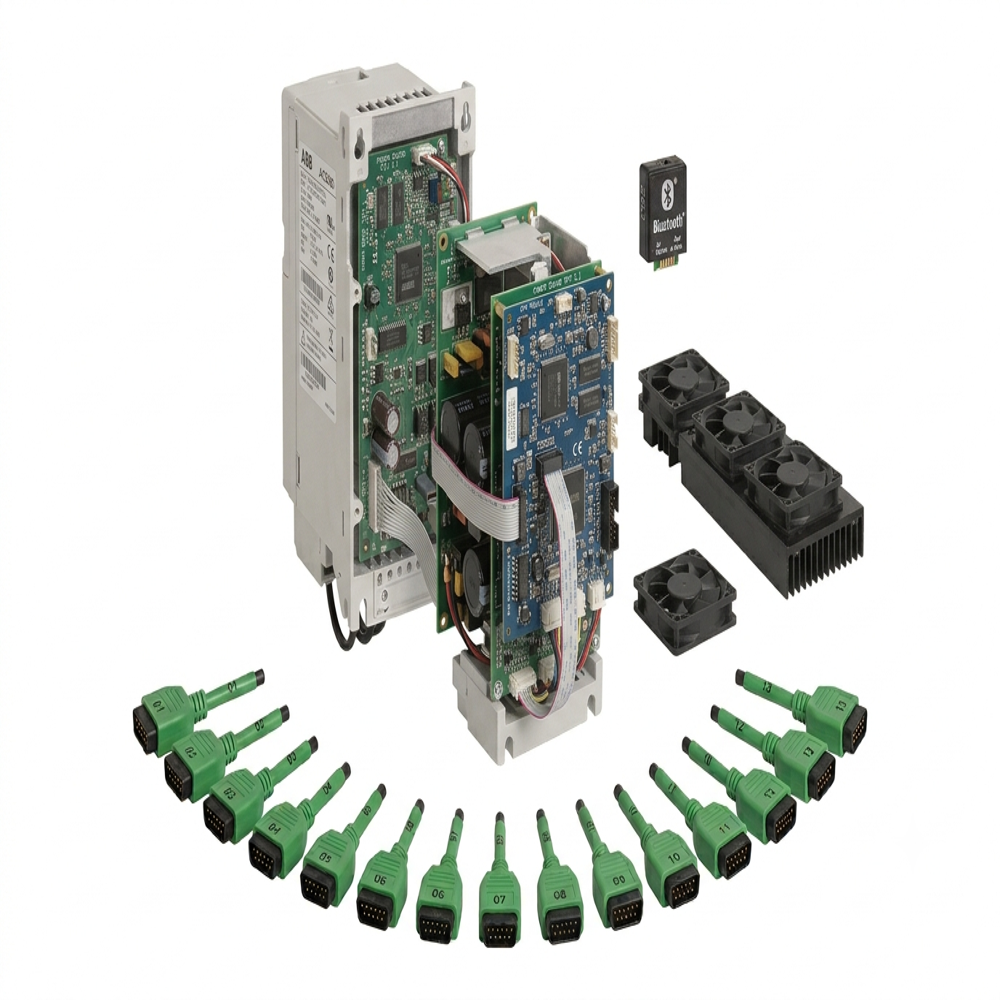

Compact & Durable: Designed with a slim profile for space-saving, side-by-side cabinet mounting. It features coated circuit boards as standard for reliability in harsh industrial conditions and is rated for operation up to 50C (up to 60C with derating).
Integrated Safety & Features: Comes standard with Safe Torque Off (STO - SIL 3), an integrated brake chopper, and an EMC filter.
Easy Commissioning: Features an intuitive, icon-based control panel for quick setup without needing to master complex manuals. It also supports "Adaptive Programming" (a mini-PLC functionality) for customizing logic directly within the drive.
Connectivity: Includes built-in Modbus RTU with options to add various fieldbus protocols like PROFINET, EtherNet/IP, and EtherCAT.

Typical Applications

The ACS380 is ideal for constant-torque machinery, including:

Material Handling: Conveyors, EOT/tower cranes, and palletizers.
Processing Machinery: Mixers, extruders, and textile machines.
Food & Beverage: Bottling plants and processing equipment.
General Manufacturing: Plastics and packaging industries.

Comprehensive Motor Control

The ACS 380 offers advanced vector and scalar control modes, making it suitable for a wide variety of industrial motor applications. Its adjustable, variable frequency output provides precise regulation of motor speed and torque, supporting high operational efficiency. The integrated brake chopper and forced ventilation ensure effective thermal management during intensive processes.

User-Friendly and Flexible Integration

Equipped with a swappable and intuitive control panel, the ACS 380 is exceptionally easy to configure and operate. Multiple communication interfaces, including Modbus RTU, Bluetooth, and RS485, support seamless integration into industrial networks. Firmware upgrades can be performed as needed, ensuring ongoing compatibility and feature improvements.

Safety and Reliability Assured

With built-in Safe Torque Off (STO) and comprehensive protection against overload, short circuit, and overvoltage conditions, the ACS 380 prioritizes operator safety and equipment longevity. It withstands demanding environments with operations up to 4000 meters (with de-rating) and wide humidity and temperature ranges, providing assured reliability for mission-critical applications.

FAQ's of ACS 380:

Q: How do I upgrade the firmware on the ACS 380 drive?

A: Firmware upgrades for the ACS 380 are performed using the user-friendly control panel and the dedicated communication interface. Simply connect the drive via Modbus RTU, RS485, or Bluetooth, then use the manufacturer's firmware tool to update the system. This process ensures you always have access to the latest features and improvements.

Q: What safety features are integrated into the ACS 380 for motor control?

A: The ACS 380 includes Safe Torque Off (STO) functionality and comprehensive protection against overload, short circuit, and overvoltage. These features enhance both operator safety and equipment protection, making the drive suitable for critical industrial applications.

Q: Where can the ACS 380 be installed and used?

A: Designed for flexible deployment, the ACS 380 supports wall mount and panel mount installations in industrial automation environments. Its compact, robust structure and IP20 rating make it ideal for use in manufacturing lines, motor control centers, and process industries.

Q: What are the benefits of the ACS 380's adjustable frequency output?

A: The adjustable, variable frequency output allows precise control over motor speed and torque, enabling optimized energy consumption and enhanced process efficiency. This versatility makes the ACS 380 suitable for a wide range of loads and dynamic operational requirements.

Q: How does the ACS 380 ensure reliable operation in challenging environments?

A: The ACS 380 operates at high efficiency (94-98%) and features forced ventilation, overheat protection, and operation up to 4000m altitude (with de-rating above 1000m). It also withstands broad temperature (-10C to +50C) and humidity (5%-95% non-condensing) ranges, ensuring stable performance under various industrial conditions.

Q: When should I consider using the swappable control panel feature?

A: The swappable control panel is beneficial when quick configuration changes or replacements are required, minimizing downtime. It supports efficient troubleshooting, easy firmware updates, and fast, user-friendly parameter adjustments directly on-site.
