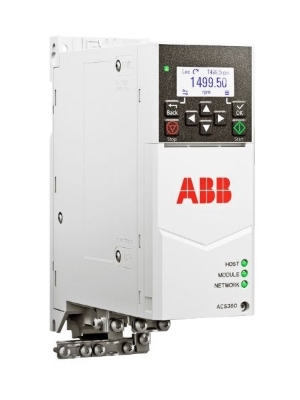

ACS 380 (Three phase 5HP)

Name: ACS 380 (Three phase 5HP)
Brand: Adarsh Industrial Automation
Price: 12500 INR
Availability: InStock

Price 12500 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

ACS 380 (Three phase 5HP) Specification

Feature
Integrated Safety; Built-in EMC Filtration; High Performance For Harsh Environments

Efficiency
Up to 97%

Power Factor
0.98

Shape
Rectangular

Overheating Protection
YES

Connector Type
Terminal Block

Humidity %
5% to 95%, non-condensing

Insulation Material
High-Quality Polymer

Operating Temperature
-10C to +50C

Mounting Type
Wall Mount

Surface Finish
Powder Coated

IP Rating
IP20

Product Type
AC Drive (Variable Frequency Drive)

Application
Industrial Motor Speed Control

Protection Level
Overload, Short-Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
400 V AC

Energy Consumption
Optimized Energy Efficient

Output Type
Three Phase AC Output

Color
White with Black and Red Markings

Dimension (L*W*H)
302 mm x 125 mm x 184 mm

Weight
4.1 kg

Input Voltage
400 V AC

Phase
Three Phase

Size
Compact

No Of Poles
3

Material
Metal Body with Plastic Front Panel

Connection Type
Screw Terminal

Noise Level
Less than 62 dB

Motor Power
5 HP (3.7 kW)

Compliance
CE, UL, cUL, RoHS

Display Type
Digital LED Display

Altitude
Up to 2000 m Without Derating

Model Name
ACS380

Control Method
Vector and Scalar Control

Input Current
11 A (Approx.)

Output Frequency Range
0 to 500 Hz

User Interface
Detachable Keypad with Navigation Buttons

Cooling
Forced Air Cooling

Communication Interface
Modbus RTU, ProfiNet (Optional)

Braking Unit
Built-in (Optional external resistor)

Safety Features
Emergency Stop, Safe Torque Off (STO)

Programming
Keypad and PC Tool

ACS 380 (Three phase 5HP) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Western Europe, Australia, Central America, Middle East, Eastern Europe, Asia, South America, North America, Africa

Main Domestic Market
Gujarat

ACS 380 (Three phase 5HP) About

Find the extraordinary ACS 380 (Three phase 5HP) drive-customizable to your industrial needs, designed for transcendent performance. Boasting vector and scalar control methods, its imposing digital LED display delivers precise readouts. With a compact metal body and powder-coated finish, it combines robust protection (IP20) and integrated safety features like Safe Torque Off and emergency stop. Communication is seamless via Modbus RTU or optional ProfiNet, and usage is intuitive through the detachable keypad. The ACS380 is optimized for energy efficiency and high efficiency up to 97%, making it the special choice for demanding motor speed control.

Primary Advantages and Applications

The ACS 380 (Three phase 5HP) offers imposing performance for industrial environments, utilizing vector and scalar control for precise motor speed management. Its built-in safety, robust protection against electrical faults, and high efficiency provide a competitive edge. Used for industrial motor speed control across manufacturing, HVAC, conveyors, and automation, this drive's adaptable programming and integrated braking are suited for diverse, rigorous applications where extraordinary reliability is vital.

Payment Terms, Market, and Certifications

For favorable valuation, our outlay policy includes flexible payment terms, with prompt order processing and swift dispatch to the main domestic market across India. Dispatched units are compliant with CE, UL, cUL, and RoHS certifications, ensuring global safety and operational standards. ACS 380 delivers peace of mind through trustworthy certifications and optimized outlay for enhanced business efficiency.

FAQ's of ACS 380 (Three phase 5HP):

Q: How does the ACS 380 achieve high motor control accuracy?

A: The ACS 380 utilizes advanced vector and scalar control methods to deliver precise speed and torque regulation for motors, essential for high-performance industrial applications.

Q: What is the benefit of the built-in safety features in the ACS 380?

A: Integrated safety systems such as Safe Torque Off (STO) and emergency stop provide reliable operator protection and compliance with industry safety standards, reducing risks during operation.

Q: When is the best time to use the built-in braking unit of the ACS 380?

A: The braking unit is especially advantageous in applications where rapid stopping or dynamic load handling is required, such as conveyor systems, cranes, or other machinery demanding quick deceleration.

Q: Where can the ACS 380 be installed for optimal performance?

A: Thanks to its compact design and IP20 rating, the ACS 380 can be conveniently wall-mounted in control panels within industrial environments, performing reliably up to 2000m altitude and from -10C to +50C.

Q: What is the installation process for the ACS 380?

A: Installation involves securely wall-mounting with screw terminals or terminal blocks, connecting to three-phase power, and configuring parameters via the detachable keypad or PC tool for tailored motor control.

Q: How does the energy efficiency of the ACS 380 translate to operational savings?

A: With optimized energy consumption and efficiency up to 97%, the drive reduces unnecessary power use, leading to substantial cost savings and lower environmental impact during prolonged industrial usage.
