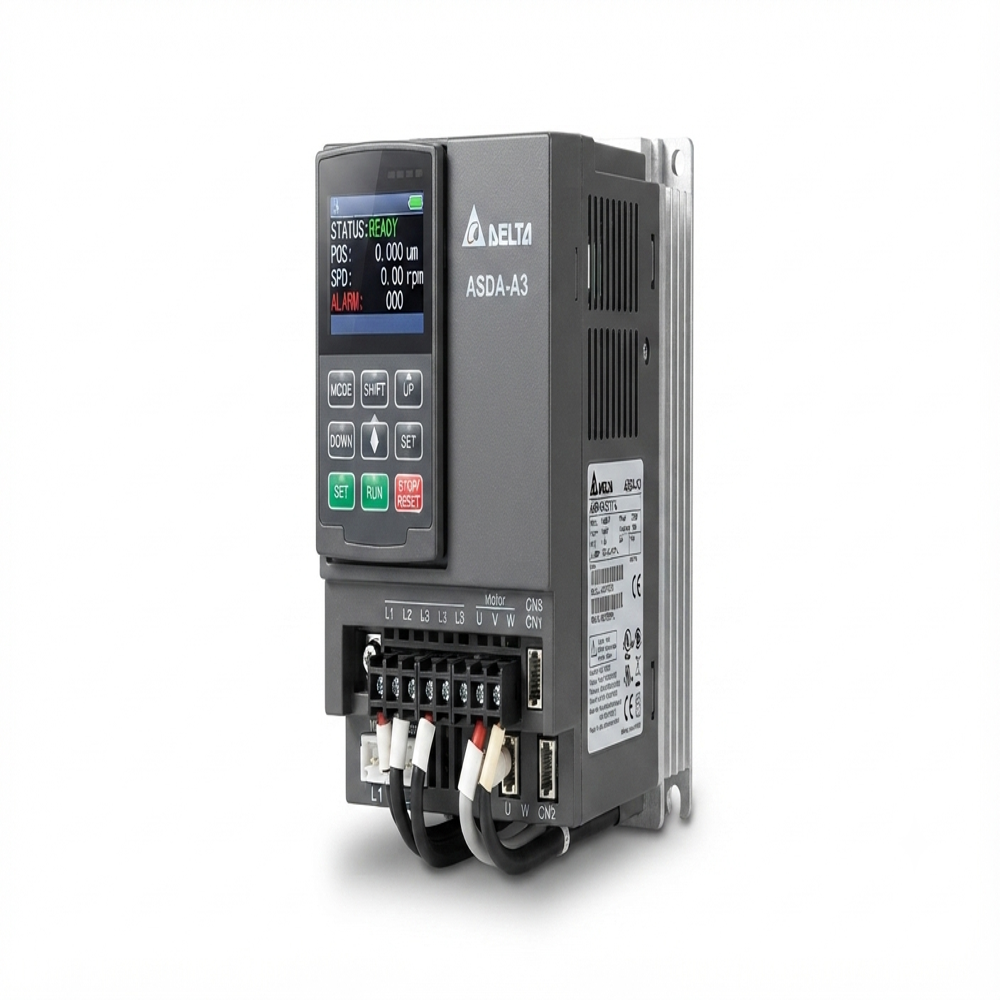

Delta ASDA-A3

Name: Delta ASDA-A3
Brand: Adarsh Industrial Automation
Price: 33402.0 INR
Availability: InStock

Price 33402.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Delta ASDA-A3 Specification

Shape
Rectangular

Mounting Type
Panel Mount

Efficiency
High Efficiency Drive System

Insulation Material
Industrial Grade Insulation for Electrical Components

Humidity %
10% to 90%, non-condensing

Surface Finish
Matt Finish

IP Rating
IP20

Feature
Auto Tuning, Advanced Vibration Suppression, High-speed Response, Built-in Position/Speed/Torque Modes

Power Factor
Over 0.9 (with appropriate connection)

Operating Temperature
0C to 55C

Connector Type
Screw Terminals, Communication Port

Product Type
Servo Drive

Application
Industrial Automation, Motion Control

Protection Level
Overvoltage, Overcurrent, Overheat, and Short-circuit Protection

Frequency (MHz)
50/60 Hz (Input Power Frequency)

Rated Voltage
200-230V AC

Energy Consumption
Optimized for High Efficiency; Value Depends on Load and Application

Output Type
PWM (Pulse Width Modulation) for Motor Control

Color
Dark Grey

Dimension (L*W*H)
192 x 100 x 181 mm (varies by model)

Weight
Approx. 3.6 kg

Input Voltage
200-230V AC, Three-phase

Phase
3 Phase

Size
Standard (varies by model specification)

Connection Type
Terminal Block, RS-232/RS-485, CANopen Connections

Material
Metal and Engineering Plastic Housing

Interface Display
LCD Display with Status and Error Monitoring

Programming Method
Parameter Setting and PC-based Software

Safety Function
Safe Torque Off (STO)

Response Frequency
Up to 3.1 kHz position loop, 2.5 kHz speed loop

Control Modes
Position, Speed, and Torque Control Modes

Communication Interfaces
RS-232/RS-485, CANopen, EtherCAT Available

Motor Compatibility
Delta ECMA Servo Motors and various compatible motors

Feedback Type
Supports Incremental/Absolute Encoders

Delta ASDA-A3 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat

About Delta ASDA-A3

We are a trusted supplier of premium-quality Industrial Automation Products, offering reliable performance, high efficiency, and long services life.

The Delta ASDA-A3 is a top-tier servo drive, pivotal for various industrial automation applications. Highlighted by its immaculate control across Position, Speed, and Torque modes, this noble device ensures supreme motor handling with Delta ECMA servo motors and others. Its customizable communication (RS-232/RS-485, CANopen, EtherCAT) and advanced programming offer unmatched flexibility. Supported by incremental/absolute encoders, Safe Torque Off (STO) safety function, and comprehensive LCD status monitoring, the ASDA-A3 delivers high-efficiency output, advanced vibration suppression, auto-tuning, and robust protection-making it the definitive choice for modern motion control environments.

Delta ASDA-A3: Industrial Expertise and Key Applications

The Delta ASDA-A3 is widely used by leading system integrators and plant operators in the industrial automation sector. Its versatility makes it pivotal in robotic assembly lines, packaging machinery, CNC equipment, and conveyor systems. Plant applications include precise motion control in automotive manufacturing, electronics assembly, and food processing. The ASDA-A3 is highlighted for use in industries demanding immaculate accuracy and reliability, making it a top choice in diverse manufacturing plants and automation-controlled facilities.

Certifications, Sample Policy, and Packaging: Seamless Order Experience

Delta ASDA-A3 comes with standard industrial certifications, ensuring compliance and noble performance. Sample units can be provided-charges may apply and are deducted upon confirmed order completion. Packaging details involve sturdy, sealed containers for express shipping and safe transit. Each unit undergoes rigorous quality checks before dispatch. Express shipping options are available for urgent requirements. Our policy is transparent, supporting bulk orders and custom packaging to match your specific application needs.

FAQ's of Delta ASDA-A3:

Q: How can I customize the Delta ASDA-A3 for specific industrial applications?

A: The Delta ASDA-A3 offers extensive customization through adjustable parameters and PC-based software. Users can tailor control modes, communication interfaces, and feedback settings to meet diverse operational requirements.

Q: What types of motors are compatible with the Delta ASDA-A3 servo drive?

A: The ASDA-A3 is engineered for Delta ECMA Servo Motors but is also compatible with various other servo motors in line with industry standards, making it versatile for different automation tasks.

Q: Where can the Delta ASDA-A3 be commonly applied in a manufacturing plant?

A: It is ideal for applications in robotics, automated conveyors, CNC machines, and precise positioning systems, enhancing productivity and accuracy in a range of plant environments.

Q: What makes the LCD display of Delta ASDA-A3 advantageous for users?

A: Its LCD interface provides real-time status and error monitoring, allowing operators to quickly identify and resolve issues, improving operational visibility and minimizing downtime.

Q: How does the Delta ASDA-A3 ensure safety and equipment protection?

A: It integrates Safe Torque Off (STO), overvoltage, overcurrent, overheat, and short-circuit protections, safeguarding personnel and equipment during intensive industrial operations.
