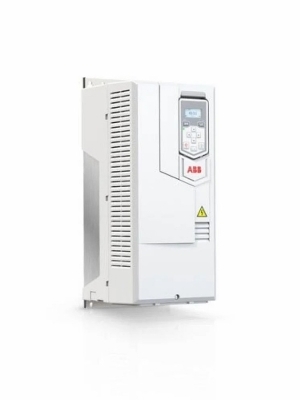

ACS 560 (Three phase 20HP)

Name: ACS 560 (Three phase 20HP)
Brand: Adarsh Industrial Automation
Price: 27500 INR
Availability: InStock

Price 27500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ACS 560 (Three phase 20HP) Specification

Power Factor
>= 0.98

Feature
User-friendly Display, Built-in EMC Filter

Mounting Type
Wall Mount

Connector Type
Screw Terminal

Shape
Rectangular

Humidity %
<95% (non-condensing)

Insulation Material
Polycarbonate

Overheating Protection
Yes, Built-in

Operating Temperature
-10C to +50C

Efficiency
Up to 98%

Surface Finish
Matte

IP Rating
IP20

Product Type
Variable Frequency Drive (VFD)

Application
Industrial Motor Control

Protection Level
Overload, Overcurrent, Short Circuit

Frequency (MHz)
50-60 Hz

Rated Voltage
400 V AC

Energy Consumption
Optimized, Energy Saving Mode

Output Type
AC

Color
White

Dimension (L*W*H)
200 mm x 152 mm x 380 mm (approx.)

Weight
Approx. 10 kg

Size
Standard Medium

Phase
Three Phase

Input Voltage
380-480 V AC

Connection Type
Terminal Block

Material
Plastic, Metal

No Of Poles
3

Standards Compliance
IEC/EN 61800-5-1, CE, UL

Programming
Parameter based, PC Tool Supported

Diagnostics
Self-Diagnosis, Fault Logging

Cooling Method
Forced Air Cooling (Fan)

Environmental Protection
RoHS Compliant

Braking Unit
Integrated

Noise Level
<68 dB(A)

Relay Outputs
2

Digital Inputs
6

Motor Power
20 HP (15 kW)

Display Type
Digital Keypad LCD

Communication Interface
Modbus RTU, Optional Fieldbus

Start Torque
High, up to 180% at 0.5 Hz

Control Method
Vector and V/Hz Control

ACS 560 (Three phase 20HP) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
North America, Africa, Asia, South America, Middle East, Eastern Europe, Western Europe, Australia, Central America

Main Domestic Market
Gujarat

ACS 560 (Three phase 20HP) About

The ACS 560 (Three phase 20HP) is a featured, top-rated industrial motor control solution known for its venerable build and valiant performance. With a powerful 20 HP (15 kW) motor, this popular drive offers vector and V/Hz control, ensuring precise operation. Its gorgeous digital LCD keypad, integrated braking unit, and robust diagnostics, including self-diagnosis and fault logging, cater to advanced industrial needs. Designed for reliability, it's compliant with IEC/EN 61800-5-1, CE, and UL standards, and delivers optimized energy consumption, superior protection, and up to 98% efficiency.

Key Competitive Advantages and Versatile Usage

The ACS 560 (Three phase 20HP) stands out for its high efficiency, user-friendly digital display, and built-in EMC filter-making it perfect for demanding industrial motor control. Its robust overload, overcurrent, and short-circuit protections ensure reliable use in general applications like conveyor systems, pumps, and fans. Suitable for standard medium industrial settings, the ACS 560's flexibility in both primary and general use guarantees high market value with minimal expenditure for enterprises.

Delivery Time, Sample Policy, and Packaging Details

Estimate prompt delivery times for the ACS 560 (Three phase 20HP), ensuring your project stays on schedule. We offer sample policies upon inquiry, balancing expenditure and customer satisfaction. The market value of this drive is enhanced through safe, industry-standard packaging-ensuring the product reaches you in pristine condition. Each unit is carefully packed in sturdy cartons with ample protective padding, reflecting our commitment to quality from order to installation.

FAQ's of ACS 560 (Three phase 20HP):

Q: How does the ACS 560 (Three phase 20HP) benefit industrial motor control applications?

A: The ACS 560 provides high start torque, integrated diagnostics, and efficient vector/V/Hz control, ensuring precise, reliable, and energy-optimized performance for various industrial motor control needs.

Q: What specific features make the ACS 560 a top-rated motor drive?

A: Key features include a digital LCD keypad, built-in braking unit, self-diagnosis, fault logging, optional fieldbus communication, RoHS compliance, energy saving mode, and up to 98% power efficiency.

Q: When can customers expect delivery of the ACS 560 after placing an order?

A: Delivery times for the ACS 560 are estimated promptly upon order confirmation and are tailored to market demand and customer requirements, ensuring swift, reliable shipping.

Q: Where can the ACS 560 (Three phase 20HP) be installed?

A: The ACS 560 is designed for wall mounting in industrial environments where three-phase motor control is required; it is suitable for usage in plants, factories, and machine rooms.

Q: What is the process for obtaining a sample or trial unit of the ACS 560?

A: Interested clients should contact the supplier directly to discuss sample policy details. The process involves specifying application needs, after which the supplier provides terms on sample availability and expenditure.

Q: How is the ACS 560 packaged to maintain its market value during transit?

A: Each ACS 560 unit is packed in a robust carton with protective padding and a matte surface finish, minimizing risk of damage during shipping and ensuring it maintains its high market value.
