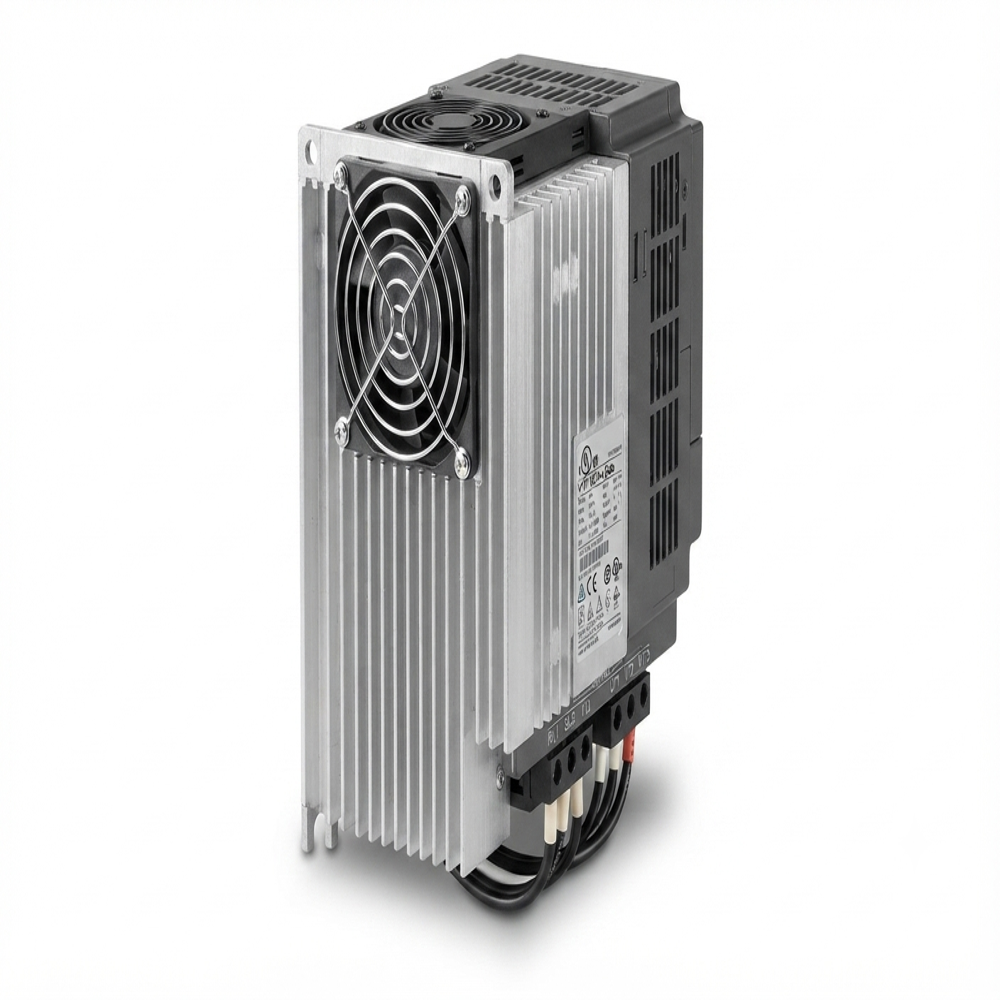

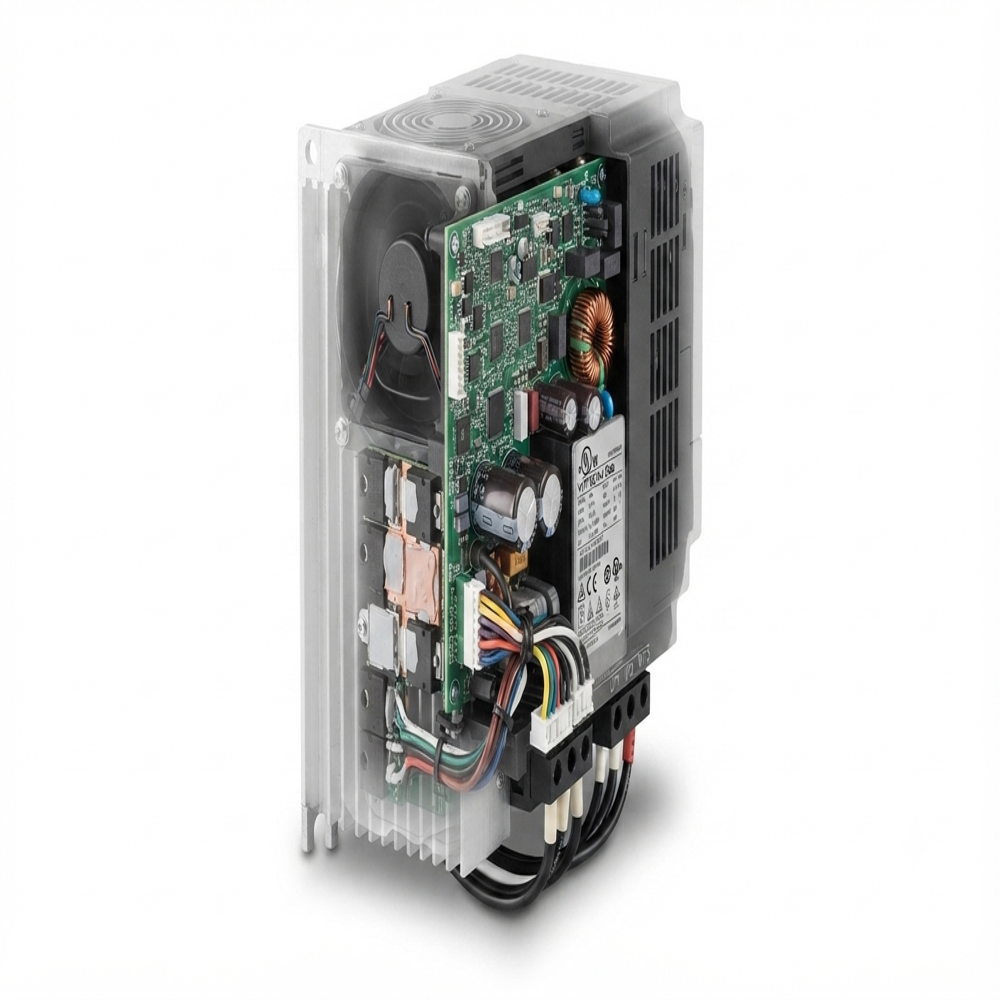

Send InquiryDelta C2000 Plus
Price 6000.0 INR/ Piece
MOQ : 1 Piece
Delta C2000 Plus Specification
- Connector Type
- Screw Terminals
- Mounting Type
- Wall Mount / Panel Mount
- IP Rating
- IP20
- Overheating Protection
- Yes (built-in thermal protection)
- Operating Temperature
- -10C to +50C
- Shape
- Rectangular
- Surface Finish
- Matte
- Humidity %
- Max. 95% non-condensing
- Feature
- Vector Control, PID Control, Fast Response, User-friendly Keypad
- Power Factor
- > 0.95
- Efficiency
- Up to 98%
- Insulation Material
- Plastic + Aluminum
- Product Type
- AC Motor Drive / Variable Frequency Drive
- Application
- Industrial Automation, Fan & Pump, Conveyor, HVAC
- Protection Level
- Over Voltage, Under Voltage, Overcurrent, Short-circuit Protection
- Frequency (MHz)
- 0.1 - 600 Hz (Output Frequency)
- Rated Voltage
- 380-480V AC
- Energy Consumption
- High efficiency, low power loss
- Output Type
- Three Phase AC
- Color
- Black / Grey
- Dimension (L*W*H)
- 188 x 110 x 157 mm (varies by power rating)
- Weight
- Approx. 3.1 kg
- Input Voltage
- 3-phase 380-480V AC, 10%
- Phase
- Three Phase
- Size
- Frame Size varies by model
- Material
- Engineering Plastic + Aluminum Heat Sink
- No Of Poles
- 3
- Connection Type
- Terminal Block
- Communications
- RS-485 (Modbus) built-in
- Software Support
- Delta VFDSoft
- Control Method
- Sensorless Vector Control, V/F Control
- Overload Capacity
- 150% for 1 minute, 200% for 3 seconds
- Display
- LCD digital keypad
- Standards Compliance
- CE, RoHS
- Motor Type
- Induction Motor, Permanent Magnet Motor compatible
- Analog Inputs
- 2 channels (0-10V, 4-20mA)
- Noise Level
- <75 dB
- Relay Outputs
- 2 channels
- Digital Inputs
- 7 channels
- Braking Unit
- Standard (Built-in)
- Cooling Method
- Forced Air Cooling
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in AC Drive Category
3 Phase VFD Drive
Price 5000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Size : Standard
Connection Type : Screw Terminal
Insulation Material : PVC + Thermal Resistant Insulation
Phase : Three Phase

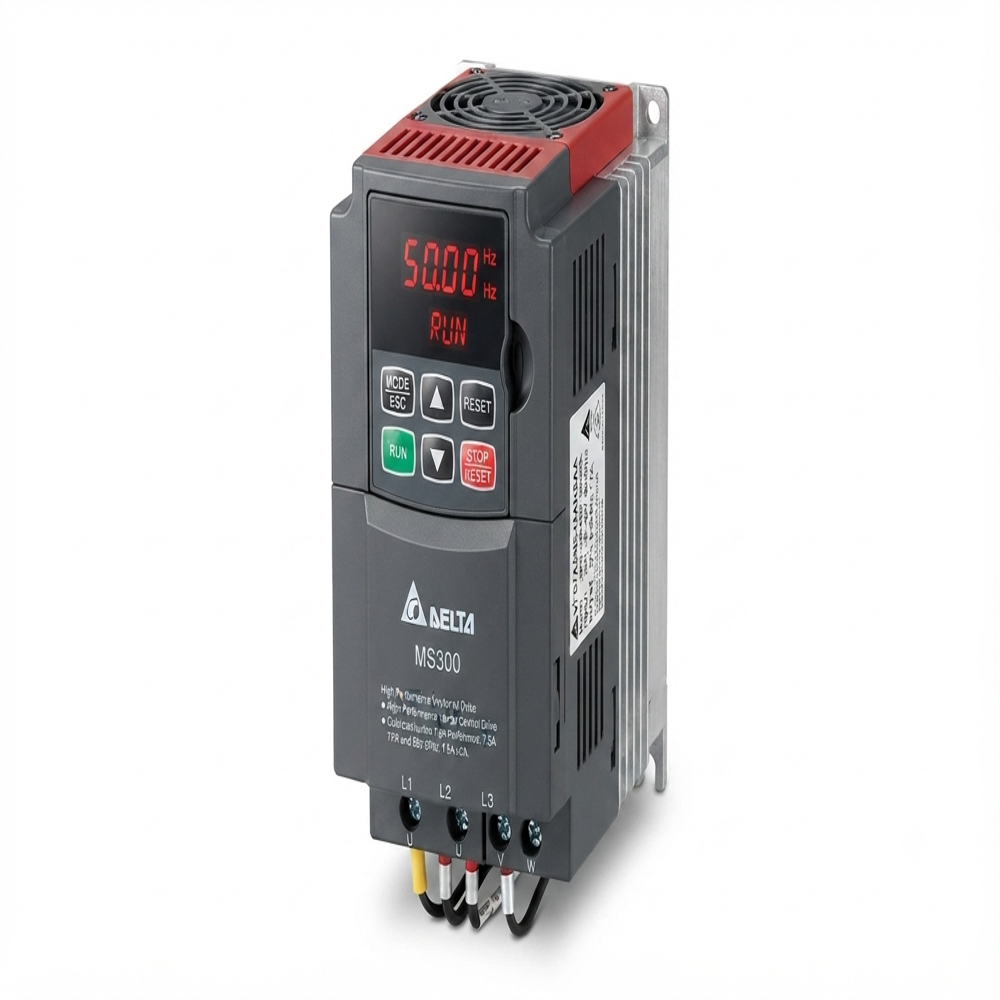

Delta MS300 High Performance VFD
