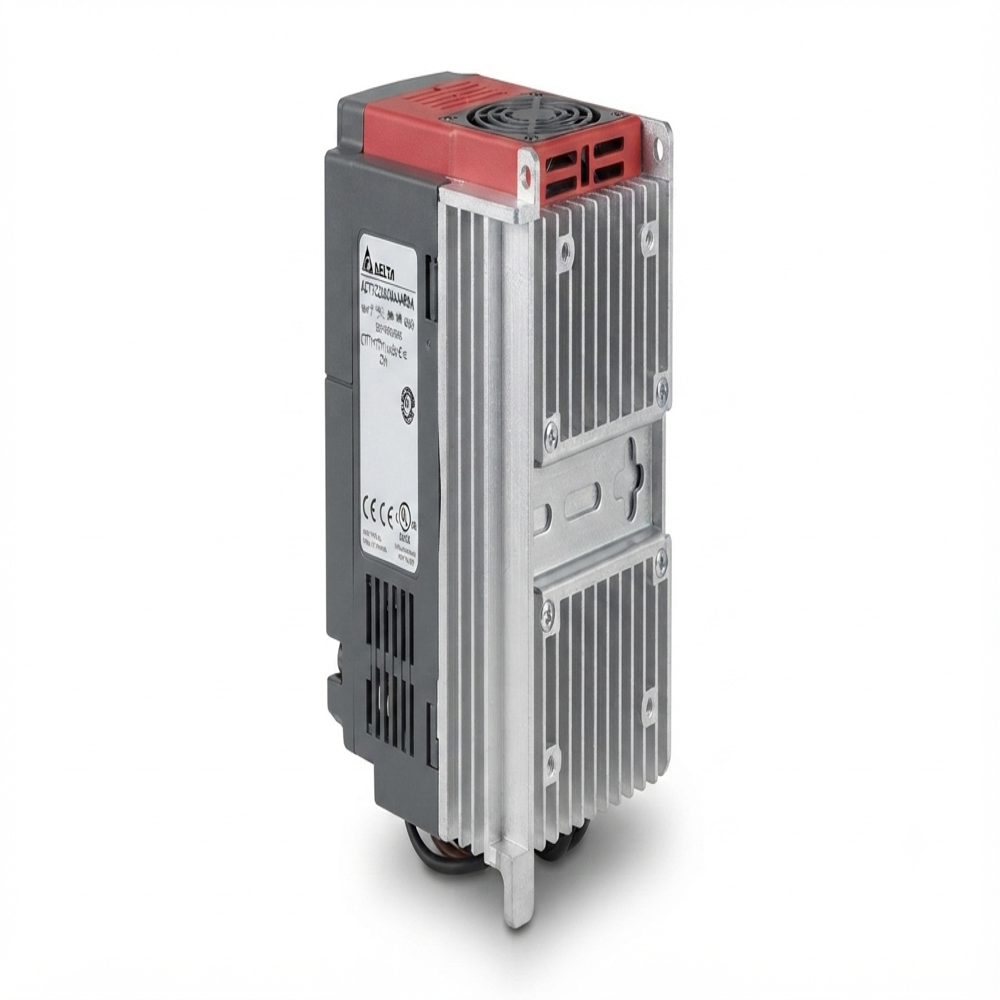

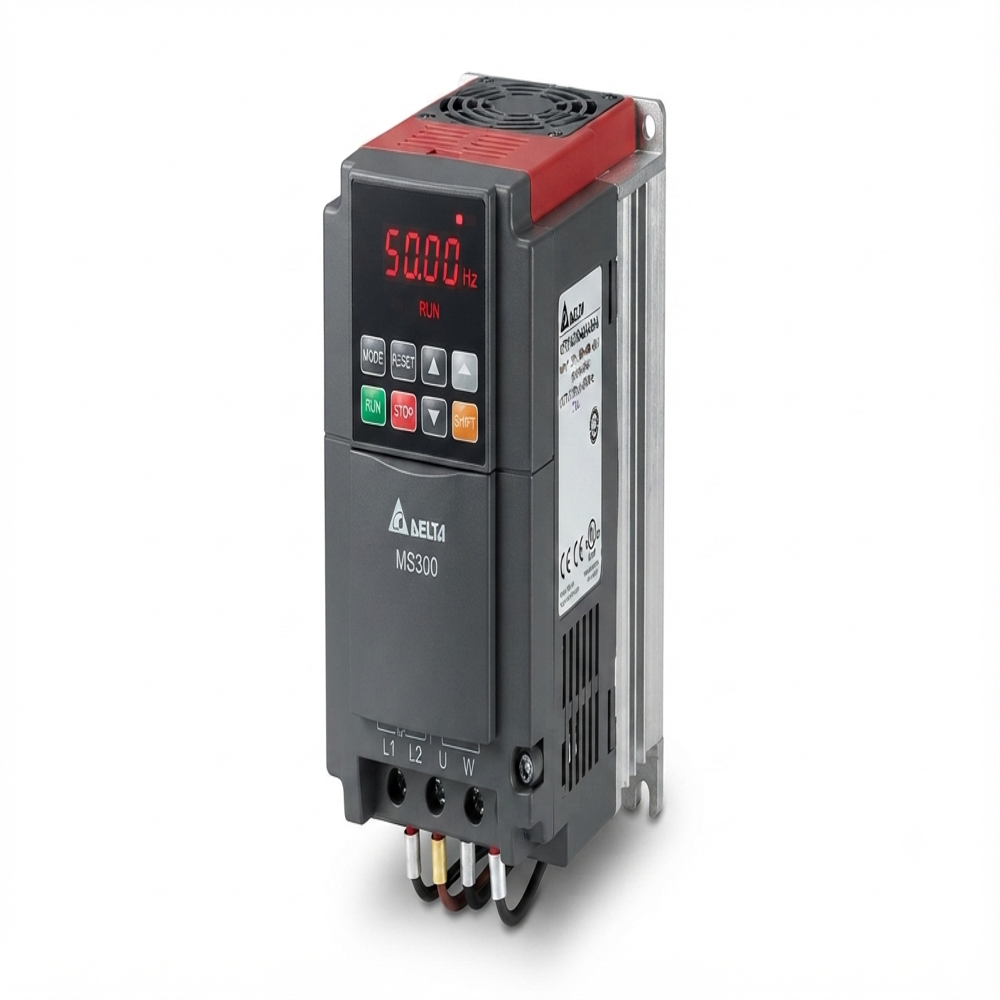

Delta MS 300

Name: Delta MS 300
Brand: Adarsh Industrial Automation
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Delta MS 300 Specification

Insulation Material
ABS/PC and Aluminium Heatsink

Power Factor
>= 0.95 (With DC Reactor)

Feature
Compact design, Built-in PLC, STO Safety Function, Flexible I/O, Sensorless Vector Control

IP Rating
IP20

Operating Temperature
-10C to +50C

Connector Type
Screw Terminal

Humidity %
0 to 95% RH (Non-Condensing)

Efficiency
>= 98%

Mounting Type
Wall/Panel Mount

Surface Finish
Textured and Matt Finish

Shape
Rectangular

Product Type
AC Motor Drive (Variable Frequency Drive - VFD)

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Overvoltage, Undervoltage, Short Circuit

Frequency (MHz)
0.1 - 599 Hz (Control Range)

Rated Voltage
3-Phase 380~480V AC

Energy Consumption
Optimized through vector control and standby mode

Output Type
PWM (Pulse Width Modulation)

Color
Black / Grey with Red Accents

Dimension (L*W*H)
Approx. 185 mm x 90 mm x 145 mm

Weight
Approx. 1.2 kg

Input Voltage
3-Phase 380-480V AC (Main Power)

Phase
Three Phase

Size
Compact/Standard

Connection Type
Terminal Block

No Of Poles
3

Material
Plastic (Front Panel), Aluminium (Heatsink)

Analog Outputs
1 x 0-10V / 4-20mA

Braking Unit
Built-in Braking Chopper (For Multiple Models)

Analog Inputs
1 x 0-10V / 4-20mA

Cooling Method
Forced Air Cooling (Fan)

Communication Interface
RS-485 (Modbus), Optional Profibus/Ethernet

Noise Level
<70 dB(A)

Control Method
Sensorless Vector Control, V/F Control, Closed Loop Vector Control

Altitude
Maximum 1000m Above Sea Level

Relay Outputs
1 Programmable Relay Output

Memory Feature
Parameter Copy via Optional Keypad

Display Type
LED Digital Display

Digital Inputs/Outputs
Multiple Programmable DI/DO

Delta MS 300 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat

About Delta MS 300

We are a trusted supplier of premium-quality Industrial Automation Products, offering reliable performance, high efficiency, and long services life.

Note : Output frequency

Standard models: 0 to 599 Hz

High speed models: 0 to 1,500 Hz (V/f control for IM motor only)

Dual rating design

120% for 60 seconds for Normal Duty (ND)

150% for 60 seconds for Heavy Duty (HD)

Discover the trending Delta MS 300 Variable Frequency Drive, a splendid choice for industrial automation. The matchless sensorless vector control, V/F, and closed loop capabilities deliver praiseworthy motor speed management. Featuring an LED digital display and built-in braking chopper, it ensures smooth operation and quick stopping. Communication is seamless via RS-485 Modbus and optional Profibus/Ethernet. With limited stock available in a compact, durable design finished in black/grey with red accents, this offer stands out for unmatched flexibility, safety, and energy efficiency.

Delta MS 300: Adaptable Solution for Industrial Automation

The Delta MS 300 is ideally suitable for industrial automation, supporting diverse motor speed control applications. Its competitive advantages include high efficiency (98%), built-in PLC, STO safety, sensorless vector control, and flexible I/O. Additional features such as a compact design, wall/panel mounting, and IP20 rating ensure reliable performance in demanding environments. Programmable DIs, analog inputs/outputs, and robust protection systems make it a practical and praiseworthy solution for professionals seeking dependable automation.

Samples, Pricing, and Order Details for Delta MS 300

Sample units of the Delta MS 300 are available, enabling evaluation before large-scale procurement. Products are dispatched through a designated FOB port, ensuring efficient logistics. Sample policy is transparent-request a quotation to receive the latest list price and sample terms. Our streamlined order processing guarantees fast quotations and prompt sample dispatch, helping you make an informed purchasing decision with clarity and confidence.

FAQ's of Delta MS 300:

Q: How does the Delta MS 300 enhance industrial automation processes?

A: The Delta MS 300 provides advanced control methods, such as sensorless vector and V/F control, optimizing motor performance and energy efficiency. Its built-in PLC and flexible I/O make it suitable for diverse industrial automation applications.

Q: What are the main benefits of using the Delta MS 300?

A: Key benefits include high energy efficiency (98%), matchless motor control, built-in safety features (STO), and a compact design. Its easy installation and comprehensive protection systems deliver long-term reliability and reduced downtime.

Q: When should you consider requesting a sample of the Delta MS 300?

A: Requesting a sample is ideal when evaluating product performance before committing to larger orders, ensuring it meets your project's technical and operational requirements.

Q: Where can the Delta MS 300 be installed for best performance?

A: The Delta MS 300 is designed for wall or panel mounting in well-ventilated industrial settings, operating efficiently between -10C and +50C, and up to 1000m above sea level.

Q: What is the process for obtaining pricing and ordering a sample of the Delta MS 300?

A: You can request a quotation to receive the list price and sample terms. Upon agreement, order processing is swift, and the sample is shipped from the designated FOB port.

Q: How does the memory copy feature benefit users?

A: The parameter copy function via an optional keypad allows for quick setup and easy configuration transfer between units, streamlining deployment and minimizing downtime.
