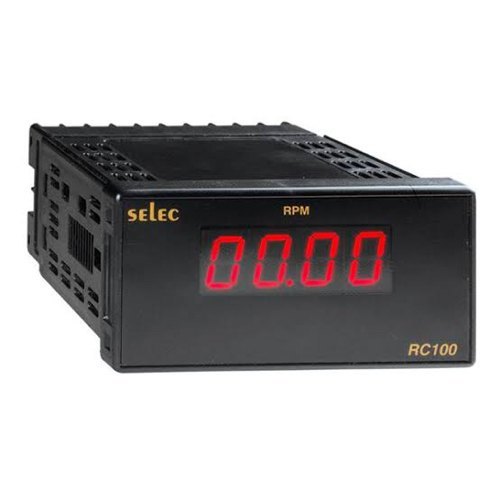

Rate Indicator

• Application
• Panel Control/Field Device Interface

• Connectivity Type
• Ethernet (RJ45)

• Dimension (L*W*H)
• Estimated: 120mm x 70mm x 25mm

• Display
• Not Specified (Likely LED/Indicator)

• Features
• Compact design, Ethernet connectivity, Simple installation

• Frequency
• 50/60 Hz

• Input
• RJ45 Port

• Installation Type
• Surface/Panel Mount

• Mounting Type
• Screw Mount

• Operating Temperature
• 0C to 50C

• Phase
• Single Phase

• Product Type
• Basic Operating Panel

• Supply Voltage
• 24V DC (as seen on panel label)

• Switch Type
• Electronic/Soft Switch (if present)

• Usage & Applications
• Control Panels, Industrial Automation, Remote Device Operations

• Weight
• Approx 120g

• Working Temperature
• 0C to 50C

• Accuracy
• 0.03% of F.S.

• Application
• Speed/RPM/Flow/Batch Counting Rate Measurement

• Connectivity Type
• Terminals

• Current
• < 180 mA

• Dimension (L*W*H)
• 96 x 48 x 52 mm

• Display
• 4 digit, 7-segment LED

• Features
• Programmable Input Type, Programmable Decimal Point, High Speed Counting

• Frequency
• Up to 10 KHz

• IP Rating
• IP54 (Front)

• Input
• NPN/PNP/Contact or Potential free contact, 3-30V DC

• Installation Type
• Panel Mount

• Measuring Range
• 1 to 9999 (counts/min, Hz, etc.)

• Mounting Type
• Flush Mount

• Operating Temperature
• 0C to 55C

• Output
• Optional Relay/Transistor/Analog Output

• Phase
• Single Phase

• Product Type
• Rate Indicator

• Protection Level
• Other

• Sensor Type
• Digital Pulse Input

• Supply Voltage
• 85-270V AC/DC

• Switch Type
• Keypad Type

• Usage & Applications
• Industrial Process Automation, Rate/Speed Indication, Flow and Frequency Measurement

• Weight
• Approx 250g

• Working Temperature
• 0C to 55C
