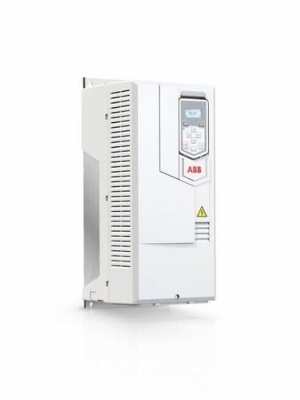

ACS 560 (Three phase 5HP)

Name: ACS 560 (Three phase 5HP)
Brand: Adarsh Industrial Automation
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ACS 560 (Three phase 5HP) Specification

Efficiency
>97%

Insulation Material
Insulated ABS Body

Surface Finish
Matt Finish

Shape
Rectangular

Connector Type
Terminal Block

Mounting Type
Wall Mount

Operating Temperature
-10C to +50C

Power Factor
>0.98 (with integrated choke)

IP Rating
IP20

Feature
User-friendly interface, Built-in EMC filter, Adaptive programming

Overheating Protection
YES

Humidity %
0-95% (Non-condensing)

Product Type
AC Drive/Inverter

Application
Industrial Automation, Pump and Fan Control

Protection Level
Short-circuit, Over-load, Over-voltage protection

Frequency (MHz)
0-500 Hz (Output Frequency)

Rated Voltage
400V AC

Energy Consumption
Optimized as per load, Energy Efficient

Output Type
Three Phase AC

Color
White/Grey

Dimension (L*W*H)
Approx. 210 x 130 x 230 mm

Weight
Approx. 3.5 kg

Phase
Three Phase

Input Voltage
380-480V AC

Size
Compact

Connection Type
Screw Terminal

Material
High-grade Plastic and Metal

No Of Poles
Variable (for VFD)

Braking Unit
Integrated Braking Chopper

Noise Level
<70 dB(A)

Control Method
Scalar (V/f) and Vector control

Standards Compliance
CE, UL, cUL, RoHS

Programming
Adaptive programming, User configurable macros

Starting Torque
200% at 0.5 Hz

Motor Power Supported
5 HP (3.7 kW)

Display
LCD Control Panel

Cooling System
Forced air cooling (Fan)

Communication Protocols
Modbus RTU, BACnet

ACS 560 (Three phase 5HP) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Middle East, Eastern Europe, Australia, Western Europe, Central America, North America, Africa, South America, Asia

Main Domestic Market
Gujarat

About ACS 560 (Three phase 5HP)

Purchase the formidable ACS 560 (Three phase 5HP) VFD-a trending and pivotal solution for industrial automation. Last chance to own this uncommon inverter offering 5 HP (3.7 kW) motor power support, an intuitive LCD control panel, and both Vector and V/f Scalar control methods. The ACS 560's integrated braking chopper, adaptive programming, and advanced protections set a new standard. Boasting CE, UL, cUL, and RoHS compliance, high energy efficiency, and a compact, user-friendly design, it ensures optimized performance, safety, and reliability for diverse pump and fan controls.

Unmatched Application Flexibility and Formidable Features

The ACS 560 (Three phase 5HP) is engineered for versatile industrial automation, including HVAC, pump, and fan control applications. Its pivotal features include a user-friendly LCD interface, user-configurable macros, adaptive programming, integrated braking chopper, and advanced protection mechanisms. The device excels in performance with a starting torque of 200% at 0.5 Hz, high energy efficiency, and compact stature. Its uncommon reliability and robust noise control (<70 dB(A)) make it a trending choice among industries seeking efficiency and control.

Packaging, Delivery, and Shipping Proposal Details

Each ACS 560 unit is securely packaged in a high-quality, padded box ensuring safe transit. Our FOB port is Mumbai, and shipment is arranged promptly within 7-10 business days after the proposal amount is confirmed. Freight options are flexible and tailored to the client's location and order size. Once shipped, customers receive tracking details to monitor their delivery, ensuring peace of mind throughout the process. We prioritize safe handling and efficient logistics to support your operations.

FAQ's of ACS 560 (Three phase 5HP):

Q: How does the ACS 560 enhance energy efficiency and operational savings?

A: The ACS 560 optimizes energy consumption based on load conditions, delivering over 97% efficiency. Its adaptive programming and integrated EMC filter further reduce power losses, resulting in significant operational savings while maintaining robust performance.

Q: What are the primary application areas for the ACS 560 (Three phase 5HP)?

A: This VFD is most commonly used in industrial automation, including pump and fan control, HVAC systems, and other applications requiring reliable three-phase motor management and precise speed regulation.

Q: When can I expect my ACS 560 order to ship after confirming the proposal amount?

A: After approval of the proposal amount, the order is shipped within 7-10 business days from our FOB port, ensuring prompt and reliable delivery.

Q: Where is the ACS 560 typically installed, and how is it mounted?

A: The ACS 560 is typically wall-mounted in control panels or electrical rooms, thanks to its compact rectangular form and robust IP20-rated enclosure, suitable for standard industrial environments.

Q: What special protections are provided by the ACS 560 to safeguard equipment?

A: The ACS 560 includes advanced protections such as short-circuit, over-load, over-voltage, and overheating protection, ensuring safety and longevity for connected motors and control systems.
